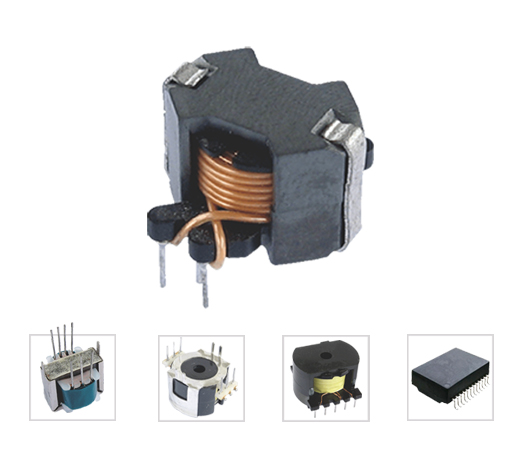

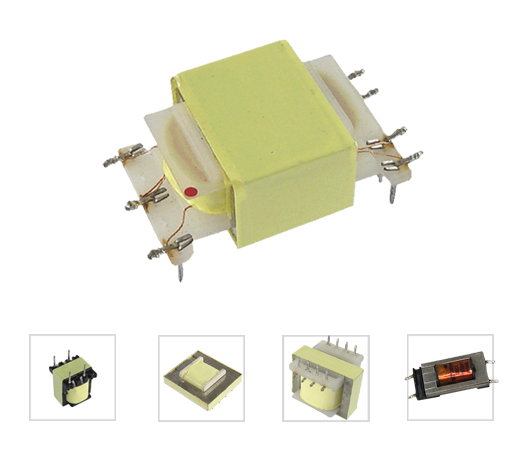

Using the excellent high-u ferrite materials, cold rolled steel,permalloy lamination core,
Nickole lamination core, We offer transformers excelling in transmission characteristics
in wide bands and meeting customer requirements with fewer windings by earning the impedance.
APPLICATIONS:
Cable TV, analogue&pulse modem, ISDN,ADSL,PABX
system, Telecom equipment,Modem,Audio equipment.
FEATURES:
- Small transmission losses and extremely small loss deviations
- Extremely small two-way impedance deviations
- Easy mountion on printed circuit boards.
- Meet UL1950,IEC950,EN60950
GENERAL CHARACTERISTIC:
- Impedance range:1Ωto 100KΩ+
- Woking Frequency:20Hz-20KHz +
- Insertion loss:down to 1dB
Available core size:
- EE/EWI-8 to EI-133
- EFD-12.5 to EFD-25
- RM-4 to RM14
- EP-7 to EP-20
- POT-6 to POT-30
- ED-8,ED-8LE,ED12.6,ED16,ED20,ED25
