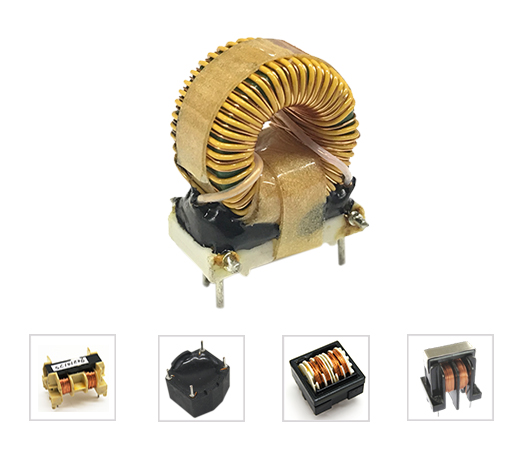

Common-Mode Choke coils & Differential Mode Choke coils are widely used in preventing noise to switching power supplies in removing conductive noise generated by TV,VCR, CD/DVD player and other equipment.
We supply filters of stable quality in the various series in characteristics,shapes, etc.using high-performance ferrite core,iron powder core, sendust core,Hi Flux core,MPP core & Amorphous core.
APPLICATIONS:
Video equipment such as TV's and VCR's,office automation equipment,audio equipment,communication equipment, measuring instruments,motors and other equipment.
FEATURES:
- Compactness and low price.
- Excellent frequency characteristics.
- Heat dispersion making them suitable for applications with larger current
- Higher attenuations characteristics.
- High dielectric withstand satisfies safety standards.
- UL Approved insulation material used.
- High inductance & Impedance.
- Low Leakage.
- Higher dielectric resistances
GENERAL CHARACTERISTIC:
- Inductance Range:
1mH to 50mH or above (Common Mode)
10uH to 1mH or above(Differential Mode)
- Rated Voltage:AC 100-250V 50/60Hz
- Rated Current:AC 0.1A rms to 30A rms+
- Dielectric Strength:AC/DC 500V to 4000V
